Flow-Battery Energy Storage: a view of long-duration applications

As wind and solar take a larger share of the power mix, storing what is generated becomes the grid’s central problem. Among long-duration storage routes (several hours and up), flow batteries attract attention for inherent safety, long cycle life, decoupled power and capacity, and deep-discharge capability.

Why long-duration storage

• The intermittency and variability of renewables call for longer storage to shift and smooth output.
• Grid peak-shaving and frequency regulation place quite different demands on response and endurance.
• Over long discharge durations, flow batteries occupy a different position on safety and life from lithium-based routes.

The technology landscape

All-vanadium, iron-chromium, zinc-based, titanium-bromine and organic / aqueous systems each trade off electrolyte cost, energy density, corrosivity and maturity. The all-vanadium route, with recyclable electrolyte and long life, is relatively far along in industrialisation.

Key components and materials

The stack is the heart of a flow battery, built from bipolar plates, electrodes, ion-exchange membranes and flow channels. The ion-exchange membrane plays a dual role — separating active species while conducting protons. Its selectivity (blocking crossover of active ions) and conductivity (lowering internal resistance) directly shape efficiency and life, and it is widely regarded as one of the field’s critical materials.

Application scenarios

• Grid side: peak shaving and frequency regulation, easing peak-valley gaps.
• Generation side: pairing with wind and solar bases to improve consumption and grid-friendliness.
• C&I / user side: peak-valley arbitrage, demand management, backup power.
• Microgrids and off-grid: islands and remote areas.

Where the industry is heading

Lower electrolyte and stack cost, higher current density and energy efficiency, longer cycle life, and meeting increasingly explicit environmental-compliance requirements (including demand to move away from fluorinated materials).

How industry needs land on PBI membranes

• Selectivity with conductivity: a PBI membrane blocks crossover of active ions while keeping proton conduction high — matching the industry’s twin demand for high efficiency and low self-discharge.
• Built for aggressive chemistry: flow electrolytes are corrosive and membrane stability sets cycle life; PBI material performs steadily over long operating periods.
• Thin yet strong: it can be made thin and tough, helping the stack cut internal resistance and raise power density.
• Inherently fluorine-free: no fluorine in the molecular structure and no PFAS/PFOA introduced in production — matching the industry’s compliance and fluorine-replacement drivers.

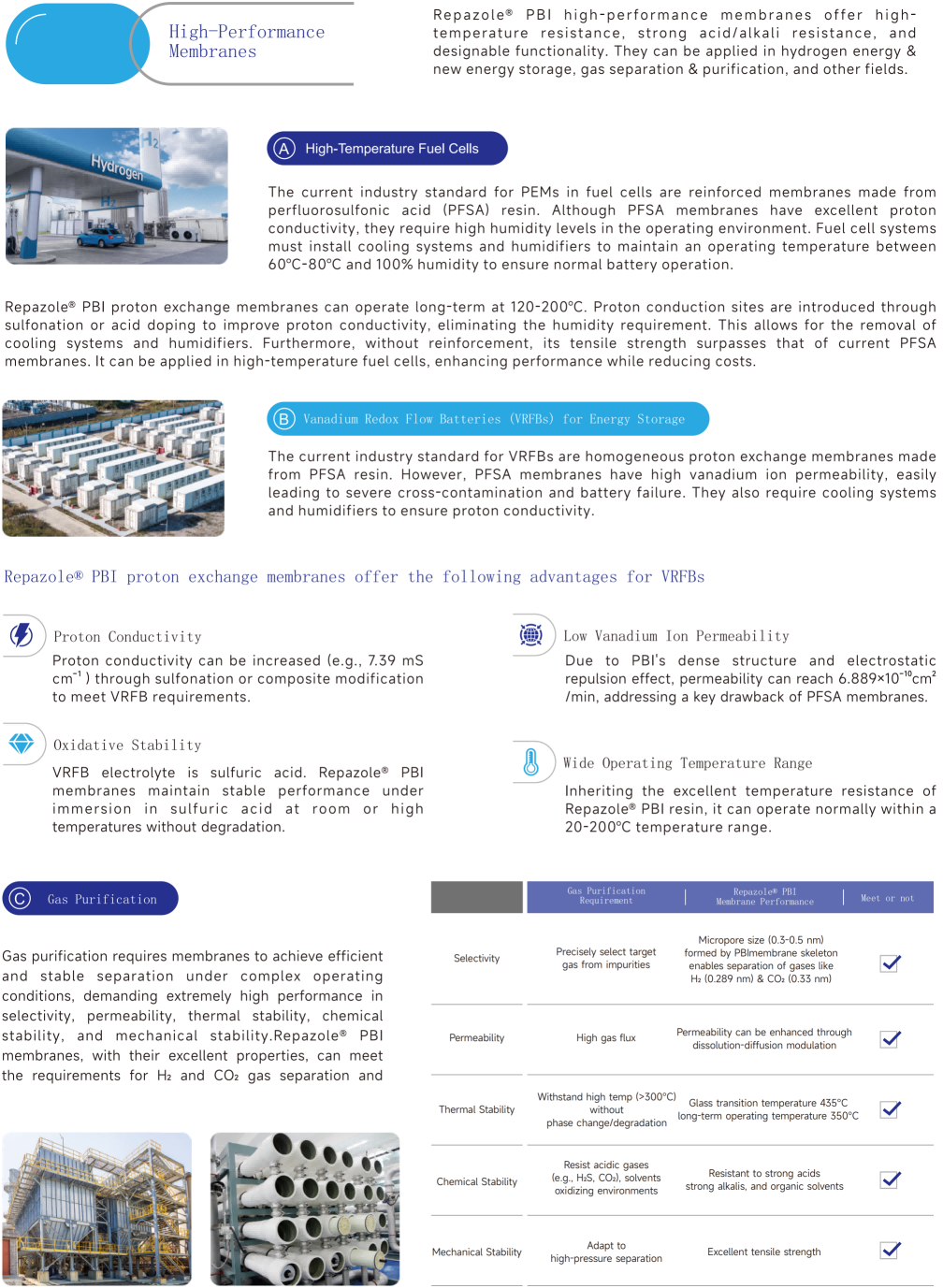

Among the critical materials of flow batteries, the PBI (polybenzimidazole) membrane is an ion-exchange membrane developed around exactly these needs — high selectivity, high conductivity, long life and fluorine-free: see the positioning and test data of the Repazole® PBI flow-battery membrane
